Step by Step Guide for SSO flow

Step 1 : Download JS SDK

a.) Download the JS SDK of PhonePe using the npm package. The details can be found here.

Step 2 : Create PhonePe instance

b.) Create an instance of PhonePe which can be accessed globally, on all the pages of the merchant website. The details can be found here.

Create PhonePe instance

PhonePe.PhonePe.build(PhonePe.Constants.Species.web)
  .then((sdk) => { //Get the instance of the sdk })

OR

let sdk = await PhonePe.PhonePe.build(PhonePe.Constants.Species.web)

Step 3 : Call fetchAuthToken()

c.) Call fetchAuthToken to fetch the grant token at the client-side. The details can be found here.

Call fetchAuthToken()

PhonePe.PhonePe.build(PhonePe.Constants.Species.web).then((sdk) => {
	sdk.fetchAuthToken().then((res) => {
		console.log("Grant token data received = " + res)
		alert(res)
	}).catch((err) => {
		console.log("Error occurred while fetching the grant token: " + err)
		alert(err)
	})
})

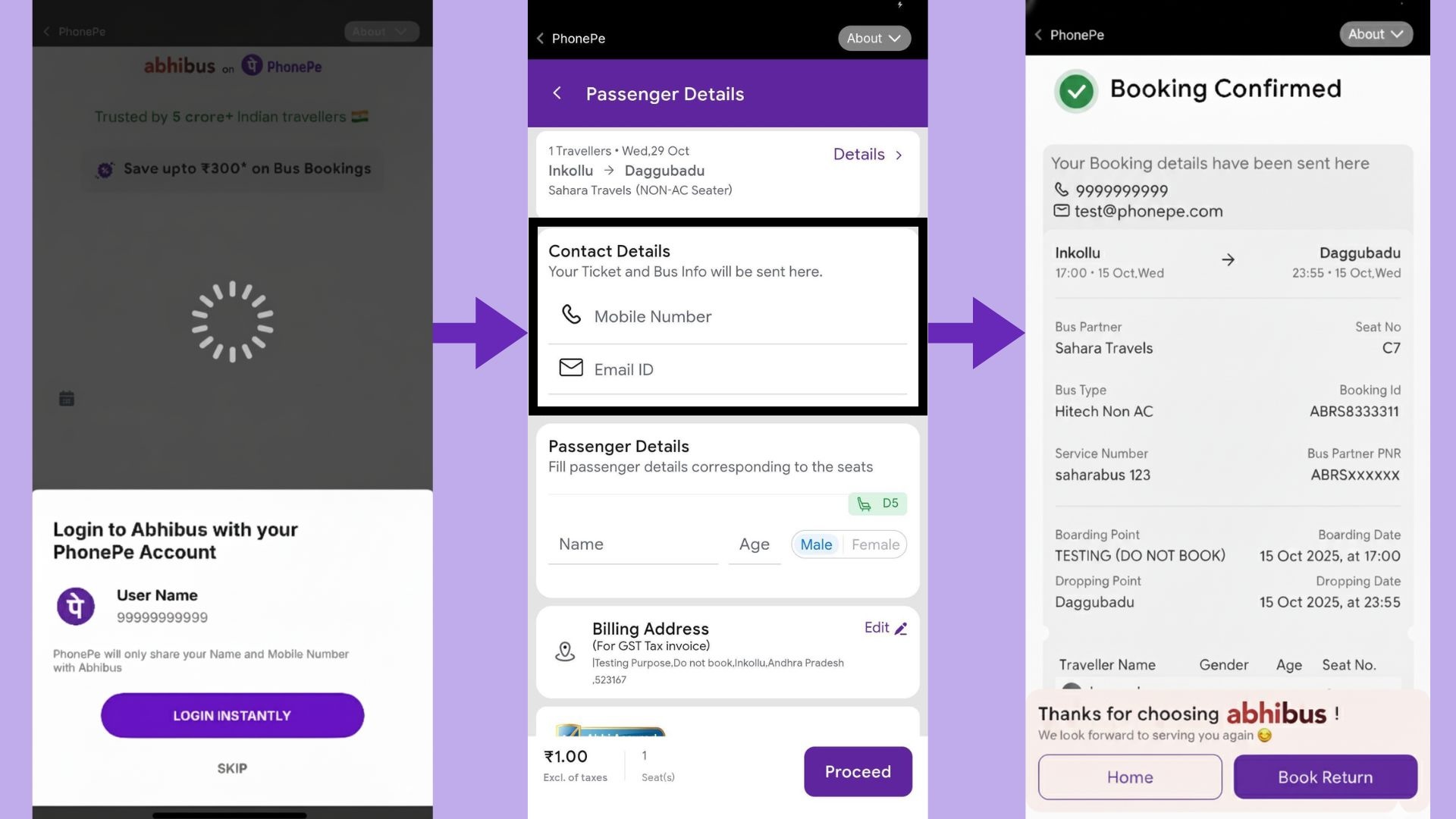

As soon as SSO fetchAuthToken is called the below pop up will be seen on UI.

Once the above SSO pop up is shown to the user, a user can

Case 1: Click on login.

In this case grantToken is sent in response, which is used to call getAuth API to fetch the access token.

Case 2: Click on Skip.

If a user clicks on “Skip”. He is shown a login page of the site where either he can create his account or he can login inside the platform.

//If a user clicks on login, promise is resolved :

Promise resolve:
{
    "grantToken": "GRT8616a8396e9b3a0899a2a6b06a3845cf0ad3521d0c4a0d5194404fba21a00b7a",
    "expiryInSeconds": 86400
}

//If a user clicks on Skip, promise is rejected :

Promise reject:
{
  "error_code": "NETWORK_ERROR"
}

Calling fetch Access token (Backend API)

d.) In case a user clicks on login, the grant token is sent at the client-side, which is used to fetch the access token. The details can be found here.

Fetch access token curl request

Creating Curl request :

a.) URL : https://apps-uat.phonepe.com/v3/service/auth/access

b.) Create curl request body

The grant token which was fetched in the fetchAuthToken() method
{
"grantToken":"GRTe098bd540176757ybbnhu879125ebec723741c5189f6a4e303f2b9d28d3e4d1289bd61dd"
}

Base encode the above using the link(https://www.base64encode.org/)

The base 64 value of
{
"grantToken":"GRTe098bd540176757ybbnhu879125ebec723741c5189f6a4e303f2b9d28d3e4d1289bd61dd"
} is equal to :

ewoJImdyYW50VG9rZW4iOiJHUlRlMDk4YmQ1NDAxNzY3NTd5YmJuaHU4NzkxMjVlYmVjNzIzNzQxYzUxODlmNmE0ZTMwM2YyYjlkMjhkM2U0ZDEyODliZDYxZGQiCn0=

Send the base encoded value in the "request" key as below . Example :

{
  "request": "ewoJImdyYW50VG9rZW4iOiJHUlRlMDk4YmQ1NDAxNzY3NTd5YmJuaHU4NzkxMjVlYmVjNzIzNzQxYzUxODlmNmE0ZTMwM2YyYjlkMjhkM2U0ZDEyODliZDYxZGQiCn0="
}

c.) Create x-verify :

Logic of calculation : SHA256(only base64 encoded str+ "/v3/service/auth/access" + salt key) + ### + salt index

1. salt key and salt index will be always unique which will be shared by the PhonePe team for each merchant.

Suppose the key and index are : {'keyIndex': 1, 'key': '427560aa-5c48-462c-9c93-e45efefc3875'}

2. Calculate the SHA256 using the link as : https://passwordsgenerator.net/sha256-hash-generator/

SHA256 of (ewoJImdyYW50VG9rZW4iOiJHUlRlMDk4YmQ1NDAxNzY3NTd5YmJuaHU4NzkxMjVlYmVjNzIzNzQxYzUxODlmNmE0ZTMwM2YyYjlkMjhkM2U0ZDEyODliZDYxZGQiCn0=/v3/service/auth/access427560aa-5c48-462c-9c93-e45efefc3875) is equal to

7D229AB125302FE5BAB6C2D35AB257FE0B418598DBFC1A0DA12E617D131D9282

x-verify : 7D229AB125302FE5BAB6C2D35AB257FE0B418598DBFC1A0DA12E617D131D9282###1

3. Headers :

x-verify : 7D229AB125302FE5BAB6C2D35AB257FE0B418598DBFC1A0DA12E617D131D9282###1
x-client-id: <MID shared by the PhonePe integration team>
content-type: application/json

Curl Request of fetch access token API

curl -X POST \
  https://apps-uat.phonepe.com/v3/service/auth/access \
  -H 'content-type: application/json' \
  -H 'x-client-id: <MID shared by the PhonePe integration team>' \
  -H 'x-verify: 53D6A504A597688B09CC23140A533F6EDDF406DC13F6E8B0D26857A792ED9268###1' \
  -d '{"request":"ewogICJncmFudFRva2VuIjoiR1JUOTcxNTY0M2NiZWQ2YmJiMzlkY2Q1ZjUzOTExNmRiMzUzZTcwOWI0YjA4NzI4NGE4OThmZGRjNTFhN2VjMGM5ZiIKfQ=="}'

Response :

{
    "success": true,
    "code": "SUCCESS",
    "data": {
        "accessToken": "AUTHca12ab41b97bea5268e65593ab2a1cc697338a656e8",
        "expiresInSeconds": 1800
    }
}

Calling Get User details API (Backend API)

e.) Using access token from above API, user details are fetched by calling getUserDetails API

Curl of get user details

Creating Curl GET request :

a.) URL : https://apps-uat.phonepe.com/v3/service/userdetails

b.) Create x-verify :

Logic of calculation : SHA256(/v3/service/userdetails + salt key) + ### + salt index

1. salt key and salt index will be always unique which will be shared by the PhonePe team for each merchant.

Suppose the key and index are : {'keyIndex': 1, 'key': '427560aa-5c48-462c-9c93-e45efefc3875'}

2. Calculate the SHA256 using the link as : https://passwordsgenerator.net/sha256-hash-generator/

SHA256 of (/v3/service/userdetails427560aa-5c48-462c-9c93-e45efefc3875) is equal to

0F8B5CFEA573998562D960FDD504819DC9544091D699412E3EBC4F2653B056E9

x-verify : 0F8B5CFEA573998562D960FDD504819DC9544091D699412E3EBC4F2653B056E9###1

3. Headers :

x-verify : 7D229AB125302FE5BAB6C2D35AB257FE0B418598DBFC1A0DA12E617D131D9282###1
x-client-id: <MID shared by the PhonePe integration team>
content-type: application/json
x-access-token : <Token which was fetched using the access token API>

Curl of get user details API

curl -X GET \
  https://apps-uat.phonepe.com/v3/service/userdetails \
  -H 'content-type: application/json' \
  -H 'x-access-token: AUTHa859ede5a5e2c4ed78f2534a72e8ebe4bb1e47322ca61ae6644316976f7d230d' \
  -H 'x-client-id: <MID/APPUNIQUE ID SHARED BY PHONEPE TEAM>' \
  -H 'x-verify: 0F8B5CFEA573998562D960FDD504819DC9544091D699412E3EBC4F2653B056E9###1'

  Response :

  {
    "success": true,
    "code": "SUCCESS",
    "data": {
        "name": "Anurag",
        "phoneNumber": "9888888888"
    }
}

Incase of email is shared

{
   "success": true,
   "code": "SUCCESS",
   "data": {
       "name": "Rohit Kumar",
       "phoneNumber": "9888888888",
       "primaryEmail": "[email protected]",
       "isEmailVerified": true
   }
}

You can find the POSTMAN code here.

Step 4 : Check the flow inside PhonePe testing builds

f.) Download the PhonePe build(APK/IPA) and test the method inside the PhonePe APP. How to do the same can be found here.

All the PhonePe Switch client-side methods can be tested inside the PhonePe App. The method will not work on the web browser.
